Description

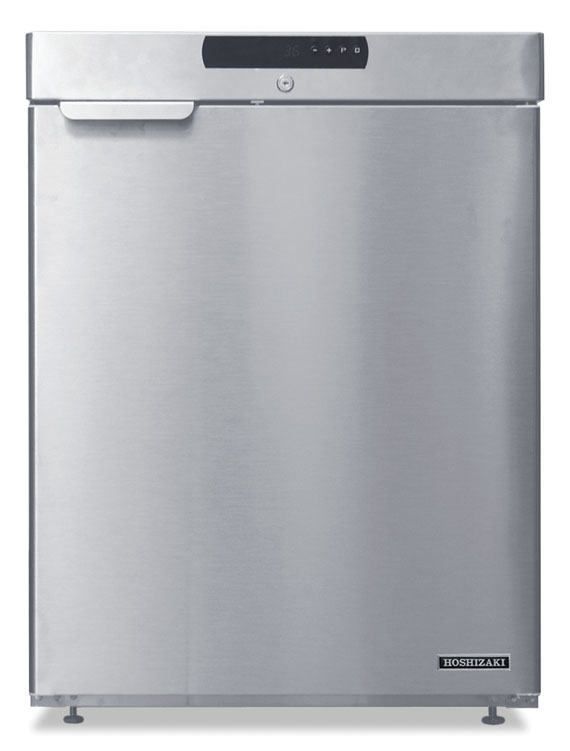

The HR24A is a compact, undercounter, reach-in refrigerator. The stainless steel cabinet ensures that all of your perishable goods are stored safely and securely. The undercounter refrigerator is UL approved for outdoor use, allowing it to sit outdoors on the patio, by the pool, or on your porch. The HR24A allows you the convenience of refrigeration in just about any setting. Standard with the HR24A are three epoxy coated shelves to maximize storage. The HR24A undercounter refrigerator uses a front vent air flow, so it requires no clearance for side air circulation. The allows the HR24A to fit seamlessly in tight areas. The HR24A operates efficiently as well, earning an Energy Star qualification for operating with conservative use of electricity. The undercounter refrigerator requires a simple 115 volt plug to operate.
- Dimensions: 23.4″ W x 24.5″ D x 32.7″ H
- Net capacity of 4 cubic feet
- Nominal Compres. of BTU/hr at
- Electrical consumption of 0.378 kWh/day, at 2 Amps on a 5 – 15P NEMA Plug
- Stainless steel exterior door with aluminum interior
- Self closing door, with stay open feature with locks (field reversible without kit)
- Stainless steel top of door pull
- Ducted air flow for even air distribution throughout cabinet
- Energy efficient, vacuum formed, seamless, one piece ABS interior liner
- Insulated with environmentally friendly cyclopentane insulation
- Stainless steel exterior front, sides and top
- EverCheck digital control system with audio and visual alarms
- R-134a refrigerant
- Automatic defrost
- Enamel coated evaporator coil for extended life
- Includes 3 epoxy coated shelves
- Epoxy coated wire shelves adjustable in 1-1/2″ increments
- Standard with (4) 0.5″ Built in adjustable legs
- Optional kits: Additional epoxy or glass shelves
- 115v/60/1, 8 ft. cord and plug
- Shipping Crate: 23.4 “W x 24.5 “D x 32.7 “H at 102 lbs
- ENERGY STAR Qualified
- UL approved for outdoor use, Three Years parts and labor warranty
Certifications: cETLus Listed, ISO 9001:14001, ETL Sanitation Listed, cETLus Listed, ENERGY STAR? Qualified
ENERGY STAR? Qualified: Yes
Storage Specs: Nominal Storage Capacity: 4ft3, Interior Storage Capacity: 4ft3, Door Opening: 23.4″ W x 32.7″ H , Depth with Door fully extended: 46.4″ D, Shelves Included: 3
Refrigeration Data: 0
Operating Limits: Ambient Temp Range: 60 – 95?F, Voltage Range: 104 – 127V, Control Setpoint Range: 36 – 50?F, Refrigerant: R-134a
