Description

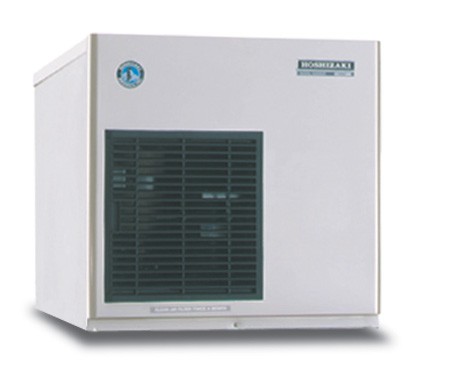

The F-450MAH is capable of producing approximately 493 lbs of flaked ice per day. Flaked ice is perfect for salad bars, seafood counters, and other food displays that require long lasting sanitary ice. This Air-cooled, Slim Line Modular ice maker features the Advanced CleanCycle24? design plus a greaseless bearing auger construction making it simple to maintain. The F-450MAH requires a Single phase, 115v/60/1 electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300. Please consult the Specification Sheet for additional details.
- Dimensions: 22″ W x 27-3/8″ D x 21-7/8″ H
- Up to 493 lbs of ice produced per 24 hours
- Mount 2 units side-by-side for 2x the ice production
- Produces flaked ice
- Durable stainless steel exterior
- Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300
- 2 second rinse every hour to remove sediment
- Advanced CleanCycle24? design
- R-404a refrigerant
- Designed for long life dependability
- Ambient temperature range: 45 – 100?F
- Water temperature range: 45 – 90?F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 9.98 amps (20 Amp Max fuse)
- 5.35 kwh/100 lbs.@ 90/70
- Single phase, 115v/60/1
- Clean ice and easy maintenance lead to longer unit life span
- Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
- Five Years: Parts warranty on Compressor, air-cooled condenser coil.
Certifications: NSF, UL Listed, ISO 9001:14001, Manufactured in the USA
ENERGY STAR? Qualified: No
Plumbing Specs: 1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Utility Consumption: 5.35 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Operating Limits: Ambient Temp Range: 45 – 100?F, Water Temp Range: 45 – 90?F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V
