Description

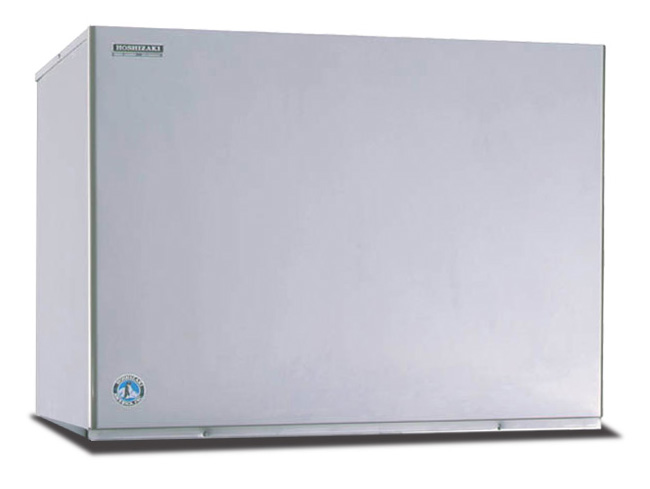

The KM-2500SRH3 is capable of producing approximately 2424 lbs of crescent cubed ice, Stack 2 units for 2x the ice production in the same floor space! Our efficient double-sided stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is perfect fit for a wide range of applications. This Remote-cooled with URC-23F (Sold Separately) ice maker features an CycleSaver? design and includes the EverCheck? alert system making the unit energy efficient and simple to maintain. The KM-2500SRH3 requires a Three phase, 208-230v/60/3 electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details.
- Dimensions: 48″ W x 27-3/8″ D x 36-7/16″ H
- Up to 2424 lbs of ice produced per 24 hours
- Stack 2 units for 2x the ice production
- Produces crescent ice
- Durable stainless steel exterior
- Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650
- EverCheck? alert system
- CycleSaver? design
- R-404a refrigerant
- Protected by H-GUARD Plus Antimicrobial Agent
- Ambient temperature range: 45 – 100?F
- Water temperature range: 45 – 90?F
- Water pressure: 10 – 113psig
- Voltage range: 187 – 253V
- 17.7 amps (20 Amp Max fuse)
- 4.5 kwh/100 lbs.@ 90/70
- Three phase, 208-230v/60/3
- Clean ice and easy maintenance lead to longer unit life span
- Three Years: Parts & Labor warranty on entire machine.
- Five Years: Parts & Labor warranty on evaporator.
Certifications: AHRI Standard 810, NSF, UL Listed, ISO 9001:14001, Manufactured in the USA
ENERGY STAR? Qualified: No
Plumbing Specs: 1/2″ FPT Inlet, Minimum 3/8″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Drain Hard Pipe or Equivalent
Utility Consumption: 4.5 kWh per 100 lbs @ 90/70, 18.6 gal of Potable Water per 100 lbs @ 90/70
Operating Limits: Ambient Temp Range: 45 – 100?F, Water Temp Range: 45 – 90?F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V
Spec Sheet:?
Instruction Manual:?
Parts Manual:?
Service Manual:?
CAD/Revit Files:?
Warranty Statement:?
Technical manual:?
