Description

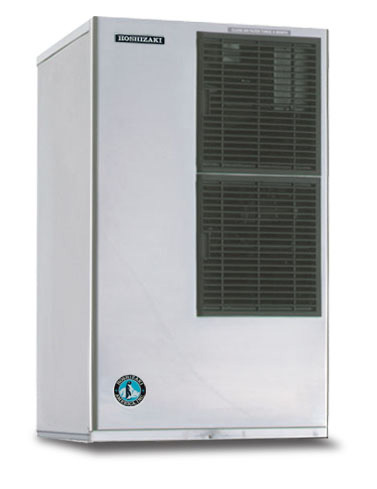

The KM-650MAH-E is capable of producing approximately 296 kg of crescent cubed ice, Mount 2 units side-by-side for 2x the ice production in the same floor space! Our efficient double-sided stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is perfect fit for a wide range of applications. This Air-cooled, Slim Line Modular, 50Hz Electrical ice maker features an CycleSaver? design and includes the EverCheck? alert system making the unit energy efficient and simple to maintain. The KM-650MAH-E requires a 50Hz electrical, 220-240v/50/1 electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B. Please consult the Specification Sheet for additional details.
- Dimensions: 56cm W x 69-1/2cm D x 95cm H
- Up to 296 kg of ice produced per 24 hours
- Mount 2 units side-by-side for 2x the ice production
- Produces crescent ice
- Durable stainless steel exterior

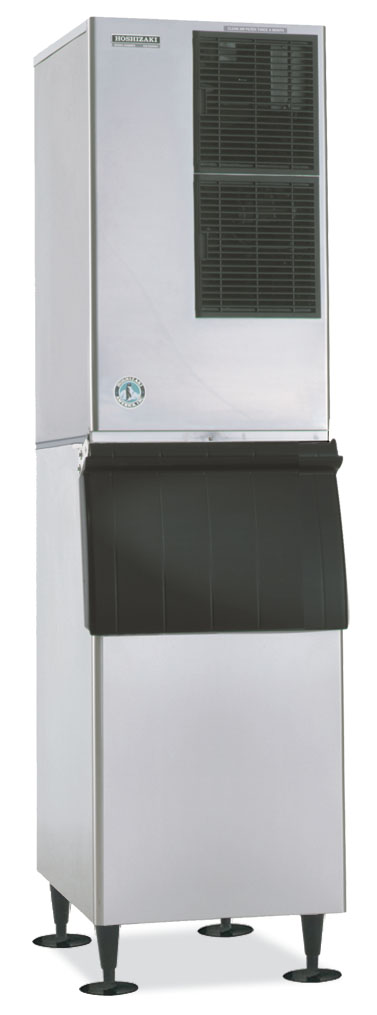

- Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B
- EverCheck? alert system
- CycleSaver? design
- R-404a refrigerant
- Protected by H-GUARD Plus Antimicrobial Agent
- Ambient temperature range: 7 – 38?C
- Water temperature range: 7 – 32?C
- Water pressure: 0.7 – 8 kg/cm2
- Voltage range: 198 – 254V
- 6.8 amps (15 Amp Max fuse)
- 5.7 kwh/100 lbs.@ 90/70
- 50Hz electrical, 220-240v/50/1
- Clean ice and easy maintenance lead to longer unit life span
- Warranty: Contact factory for warranty information.
- “-E”: 50Hz Electrical Model
Certifications: ISO 9001:14001, Manufactured in the USA, CE
ENERGY STAR? Qualified: No
Plumbing Specs: 1/2″ FPT Inlet, Minimum 6 mm Nominal OD Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 18 mm Nominal OD Hard Pipe or Equivalent
Utility Consumption: 5.7 kWh per 100 lbs @ 90/70, 70 gal of Potable Water per 100 lbs @ 90/70
Operating Limits: Ambient Temp Range: 7 – 38?C, Water Temp Range: 7 – 32?C, Water Pressure: 0.7 – 8 kg/cm2, Voltage Range: 198 – 254V
